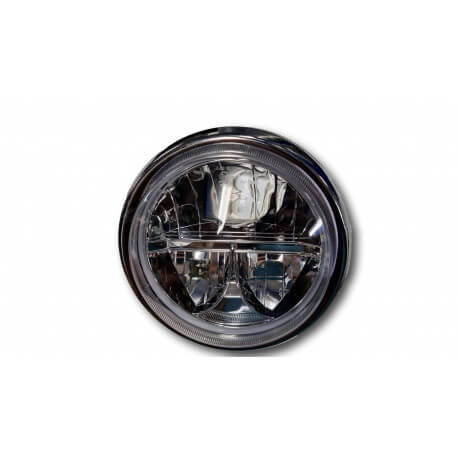

Kepspeed LED frontlight with chrome shell Dax - Skyteam E-MARK
€49.54 Tax Included
41.28 Tax Excluded
BS1584
In StockKepspeed headlight with chrome shell - led - E-mark (approved) for Honda Dax ST CT and Skyteam TNT City Zenhua.
WARNING: this type of optics does not appreciate at all the variations and peaks of current. We strongly advise you to make a setup where this optic is powered directly from the battery and not from the original regulation system which is often of poor quality.
A very simple solution is to connect the optic to the power supply of the position bulb : this one is powered by the battery.
green = ground, -12V
brown =+12V 5 leds light
white = +12V low beam
blue = +12V high beam
Kepspeed headlight with chrome shell - led - E-mark (approved) for Honda Dax ST CT and Skyteam TNT City Zenhua.
WARNING: this type of optics does not appreciate at all the variations and peaks of current. We strongly advise you to make a setup where this optic is powered directly from the battery and not from the original regulation system which is often of poor quality.
A very simple solution is to connect the optic to the power supply of the position bulb : this one is powered by the battery.
green = ground, -12V
brown =+12V 5 leds light
white = +12V low beam
blue = +12V high beam
