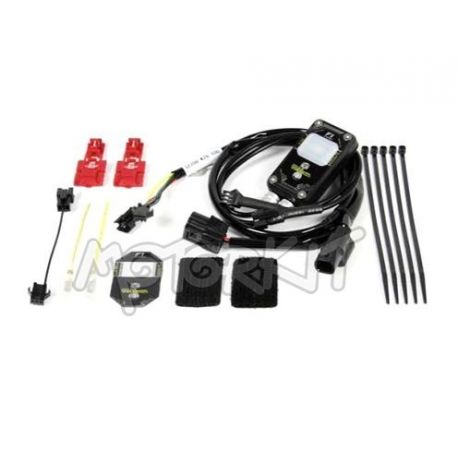

Injection controller FI-CON2 Takegawa for Honda MSX / Grom 125 cc for Big Throttle

Takegawa Honda MSX / Grom 125 FI-CON2 Injection Box.

It adjusts the injection (4 different carburation) with a potentiometer placed on the case.

Case properly assembled (2 wires) here is the procedure to follow:

1- engine stopped and ignition off (both: key and switch on the handlebar)

2- the switch of the box must be on 0

3 - put the contact (the 2)

4- a green led flashes on the box

5- put the switch on 1 (it is the programming of the map)

5 - put the gas gently and thoroughly wait 1 second and release gently.

6- normally the green led does not blink anymore = the selected map (the 1) is saved.

7- turn off the key switch.

8- put the switch on 5 (now we adjust the carburation) 5 it's like the origin.

9- Start the engine and try.

If it's too rich: black smoke and no trick, choose less than 5 starting from point 7.

If it's too lean : hole at acceleration, choose more than 5 (up to F maximum)
