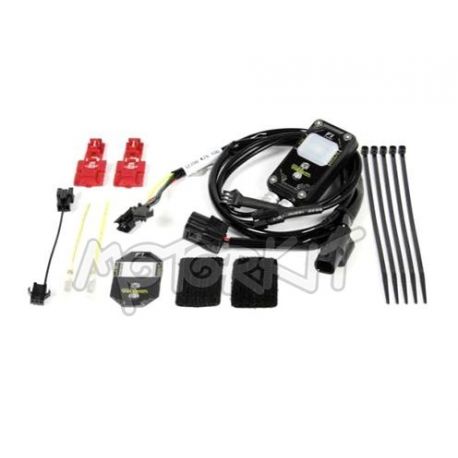

Injectie controller FI-CON2 Takegawa voor Honda MSX - Grom 125 cc voor Big Throttle

Takegawa Honda MSX / Grom 125 FI-CON2 Injection Box.

It adjusts the injection (4 different carburation) with a potentiometer placed on the case.

Perfectly compatible with European models.

Model for the 181cc 4V kit.

Case properly assembled (2 wires) here is the procedure to follow:

1- engine stopped and ignition off (both: key and switch on the handlebar)

2- the switch of the box must be on 0

3 - put the contact (the 2)

4- a green led flashes on the box

5- put the switch on 1 (it is the programming of the map)

5 - put the gas gently and thoroughly wait 1 second and release gently.

6- normally the green led does not blink anymore = the selected map (the 1) is saved.

7- turn off the key switch.

8- put the switch on 5 (now we adjust the carburation) 5 it's like the origin.

9- Start the engine and try.

If it's too rich: black smoke and no trick, choose less than 5 starting from point 7.

If it's too poor: hole at acceleration, choose more than 5 (up to F maximum)

You can also choose 3 different maps (point 5) 1/2 or 3.

1 / -Kit 181cc 4V + homologated exhaust

2 / -kit 181cc 4V + Takegawa exhaust

3 / -Kit 181cc 4v + Racing exhaust

9 / -Kit 181cc 4v + large injection body + approved exhaust

A / -Kit 181cc 4v + large injection body + exhaust Takegawa

B / -Kit 181cc 4v + large injection body + racing exhaust

For the change of the curve it is necessary to take again of point 1.
